About Zungwan ZHJM-40 Mascara Filling & Plugging And Capping Machine user manual | Zungwan

June 14, 2023
It is manufactured based on high-quality materials. It not only has the function of decompression and shockproof, but also effectively reduces the foot fatigue and prevents displacement.

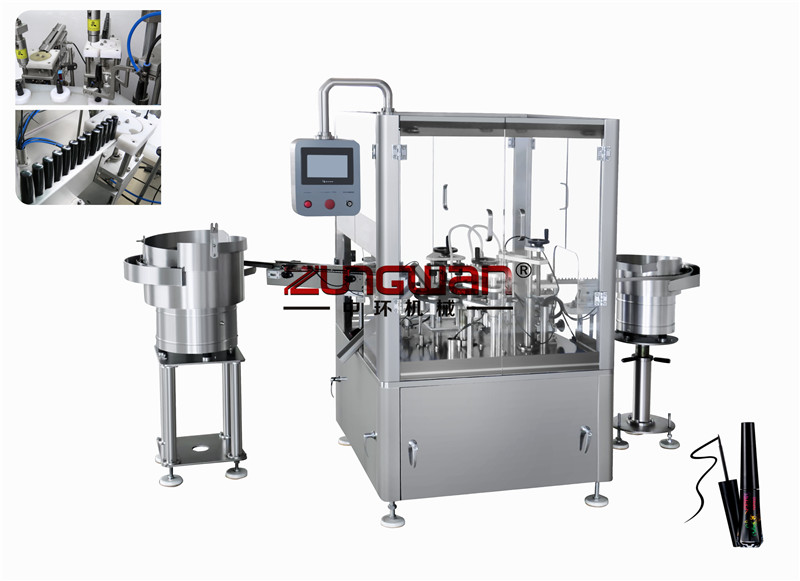

Mascara Filling &Plugging and Capping Machine with functions of automatic filling, loading brush and capping. The whole machine adopts PLC control, with the function of no bottle no filling, no brush no cover, easy operation and adjustment conveniently.

This machine apply to dope material cosmetics product which needn’t be heat up, such as nail polish, mascara.



Used for Mascara, Lip gloss etc.

With automatically functions: Feeding containers and plugs, Filing and Capping. Including the unqualified rejection and good products into next steps etc..

Capping without plug, or plugging without cap, which will be rejected. If no plug, no cap, machine will give an alarm, stop working.

Feeding capping by XZ axis manipulator to take and place into mouth of containers by pneumatic with high precision.





Main technical parameter:

Main motor power: 0.75KW

Production Capacity : 40pcs/min

Filling volume: 5-20ml

Air supply pressure: 0.6-0.8Mpa

Dimension: 1750*1650*1820mm


FAQ

1.Can I get samples from your factory?
No, Our factory will produce equipment according to the bottles and caps provided by customers.
2.What’s the delivery time ?
Pattern needs 30-60 days.
3.Do you accept OEM business?
Yes, we are OEM supplier.

Advantages

1.Our packing machine is extensively used in Cosmetics, washing, medicine, food, etc. Artificial intelligence is the future trend.
2.We provide a one-stop service integrating design, measurement, production, delivery, installation, and after-sales service.
3.We have Obtained ISO9001 quality management system authentication and parts of our products have passed CE authentication.
4.We are a real manufacturing factory, not an assembly enterprise, let alone a trading company.
