OEM Perfume Filling Capping Pressing Machine ZHS-80PM Manufacturer

Machine SpecificationFilling volume: 5~120mlFilling speed: 30-50bottle/minFilling accuracy: ≤±1%Finish products rate of cap dropping and locking: ≥99%Main machine power: 1KW  220/380 V  frequency control

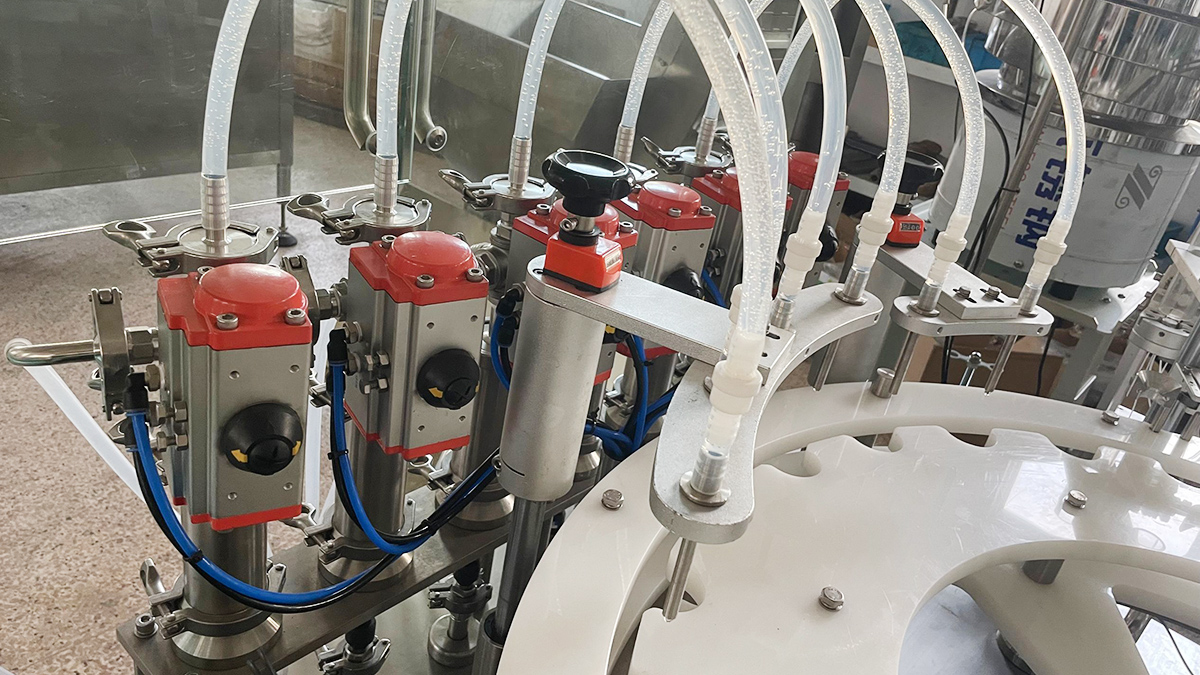

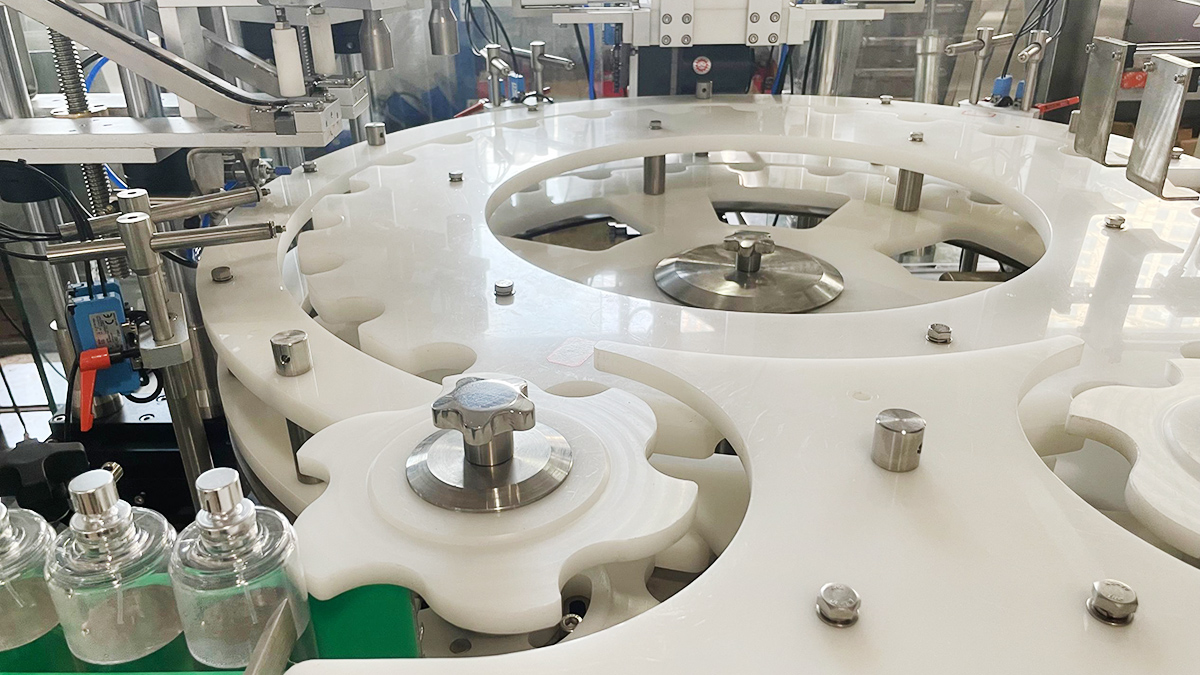

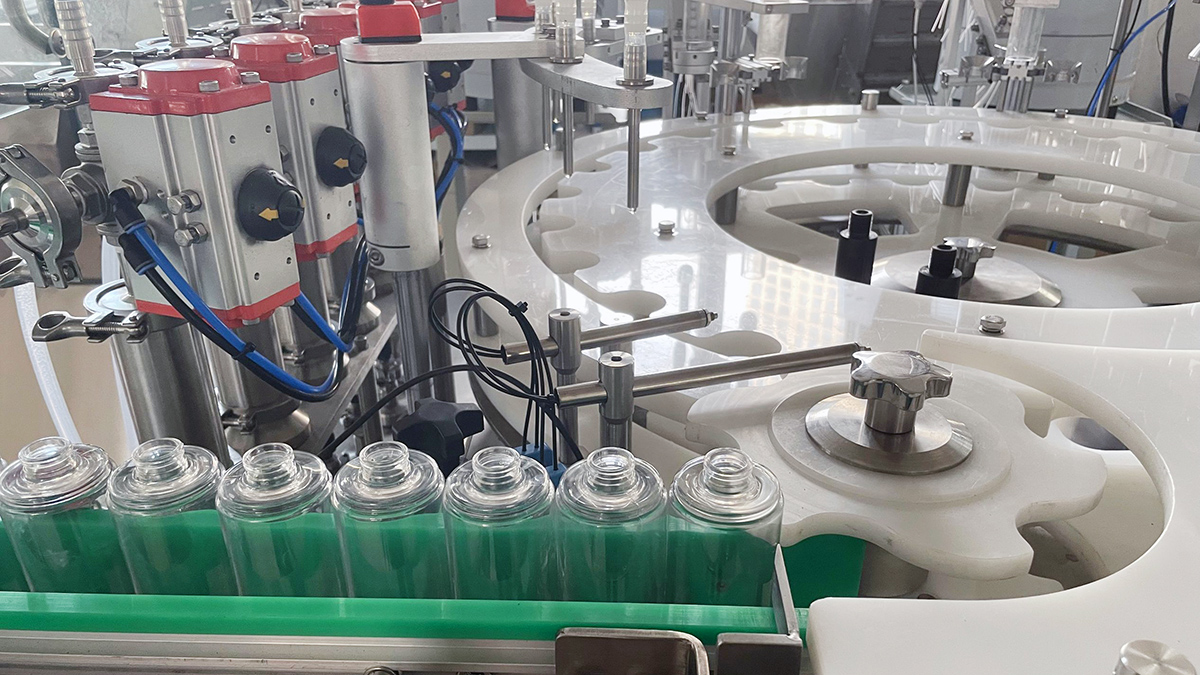

This machine has the functions such as automatical screw type bottle feeding, bottle detecting (no bottle no filling, no bottle no cap feeding ), filling, cap feeding and capping automatically.

The line consists of automatic bottle unscrambler, filling rotation (rolling) cover machine, vertical labeling machine components, can be fully automated complete management bottles, filling, rotating (rolling) cover, label coding processes, mainly used Spray the solution on the production line in this production line full compliance with the new GMP requirements.This sprayer pump, glass dropper bottle filling and capping machine includes the turn table feeding bottle, automatic filling, automatic feeding sprayer pumps(glass dropper),capping, labelling and bottle collection table.This production consists of bottle feeding table, peristaltic pump filling, feeding sprayer pump(glass dropper),pre-capping,servo capping, labelling and bottle collection table.Model: DTNX-60XBBrand: ZUNGWAN

Lip gloss Filling &Plugging and Capping Machine with functions of automatic filling, loading brush and capping. The whole machine adopts PLC control, with the function of no bottle no filling, no brush no cover, easy operation and adjustment conveniently.This machine apply to dope material cosmetics product which needn’t be heat up, such as nail polish, lip gloss and so on.

A makeup foundation filling machine includes: container supplying means for supplying at least one container in which a puff is contained to a fixed position on a stage; elevating means having a flow pipe which is elevated above the container arranged at the fixed position by the container supplying means and pressing and transforming the puff in a state where the flow pipe gets in contact with the puff during a lowering action of the flow pipe; and foundation supplying means for supplying foundation of a fixed volume to the puff through the inside of the flow pipe in the state where the flow pipe directly gets in contact with the puff pressed and transformed while the flow pipe lowers by the elevating means.

Lotion  filling and capping machine,cream filling machine,This machine has the functions such as automatical screw type bottle feeding, bottle detecting (no bottle no filling, no bottle no cap feeding ), filling, cap feeding and capping automatically.Model: ZHG-50Brand: ZUNGWAN

Liquid, lotion, cream generic.Automatic filling, within corking, capping, the container is discharged.Linear operation, automatic maneuver recycled jig.Fixture adjustable, exchange bottle type simply adjust the clamp to fill different bottle.Servo motor control sneak follow filling, to prevent the filling material outside the spray when the bubble.

Automatic Medical Reagent Tube Unscrambling,Filling,Plugging,Capping,Sleeve Labeling Automatic Packing Line This production line is designed for reagent unscrambling, filling,plugging, capping and sleeve labeling.This filling and capping machine speed requirement is 60-80 bottles per min.Design required 100% automation rate without without human interference.Whole machine covered by 304 stainless steel,material contact parts made of 316L stainless steel, ceramic, meet the GMP standard.l The unscrambler is high speed unscrambler which doing the sorting disordered bottles in order and feeding into the conveyor of the filling and capping machine.l After bottle entering the filling machine, sensors will detect the bottles to control no bottle no fillingl With servo ceramic pump filling system, machine will do high accuracy and fast speed filling, filling speed and filling volume are adjustable from the HMI.l Ceramic pump filling system on filling and capping machine, because of no sealing rings in filling system, which make maintenance much easierl Double vibrators automatic sorting the plugs, our patent design two mechanical hand picking device will pick and place the plugs to the filled bottles togetherl Then machine passing to the screw capping main machine.l Sensors will detect the plugs on the bottles to control no plug no cap feeding.l Two cap sorting vibrators doing sorting the caps,Double mechanical hands picking the caps to the plugged bottles.l During placing the cap the servo system will do the pre-capping to prevent the cap flying off or wrong screw thread,highly improve the capping success rate.l Then capping station will doing cap tightening automatically.l Both pre-capping and capping stations are controlled by servo system, capping torque and speed adjustable from the HIMI.l After the works of filling and capping machine finished, bottles enter into the sleeve labeling machine for sleeve inserting and shrinking.l Then finished products arrived the collection station for secondary packing progress.
