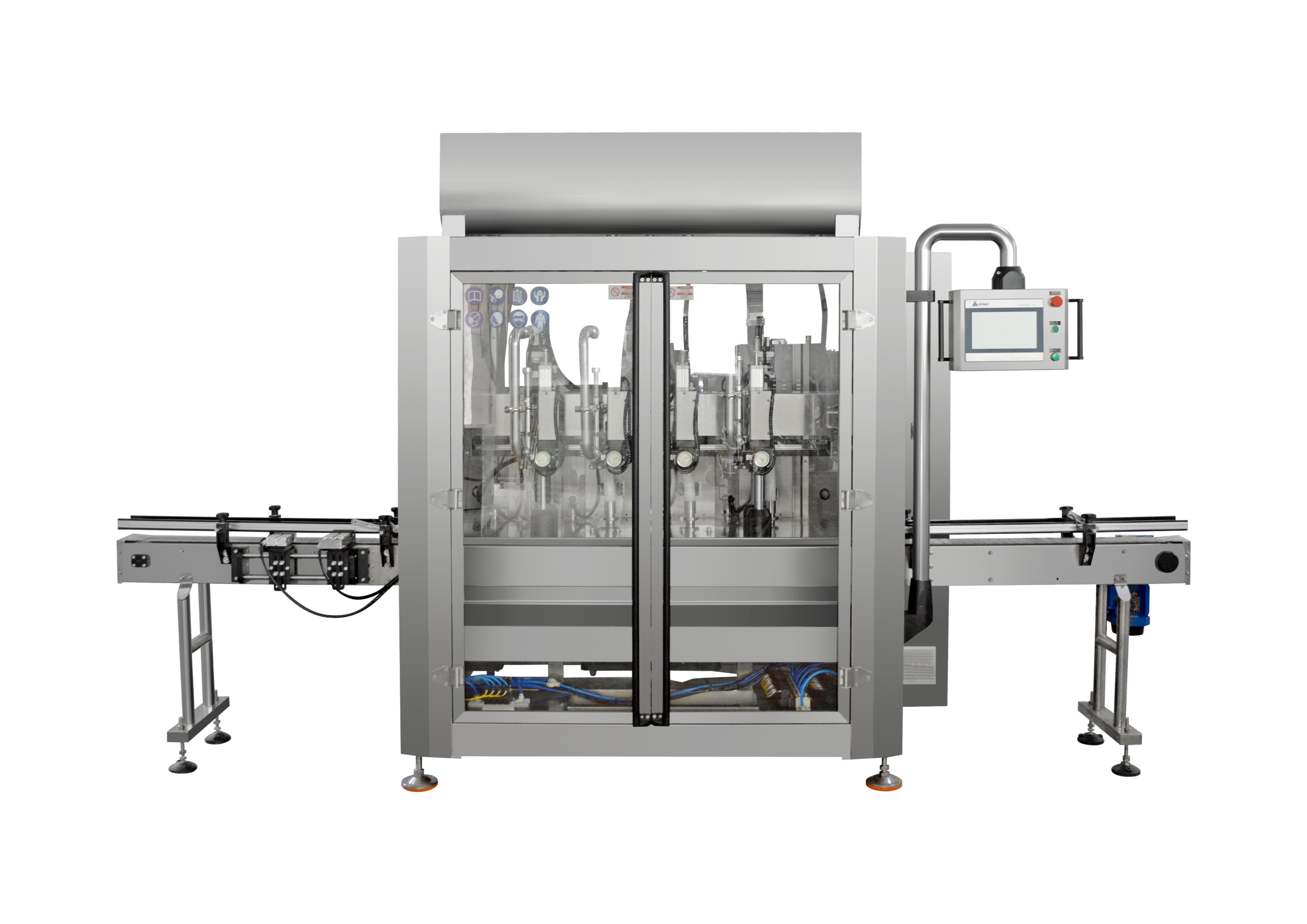

The automatic filling machine adopts the principle of plung quantitative filling,andtheinlet, positioning, filling and out of the bottle are automatically controlledbythePLC,which conforms to the GMP standard. Suitable for medicine, food, daily chemical, pesticide and fine chemical liquid paste filling. in the filling station of the fillingmachine,because the bottle body continually move forward, tracking the filling parts requiresfour functional actions: tracking down the insertion of the bottle mouth, trackingfilling,fast rising and quick return. Each functional action can be decomposed intohorizontaltracking motion and vertical lifting motion, and thefour functional actions formamovement cycle.
FEATURES
1. Touch screen operation interface;
2. Up and down movement type filling, effectively prevent thefoamfrombeingproduced, easy to take apart and wash;
3. The filling accuracy can reach + 1%;
4. The filling cylinder is ground, unique filling valve design, noleakage;
5.No filling without bottle and automatic shutdown functionfor bottleaccumulation;
6.Design different positioning devices according to the actual situationofthebottle;
7.The equipment is easy to clean and can be disassembledwithouttools.It canalso be cleaned online or sterilized at high temperature;
8.PLC programmable control use Japan Mitsubishi;
9. Frequency converter adopts France Schneider
10.Pneumatic components adopt Taiwan Airtac;
11. Material contact parts are made of SUS304# stainless steel;
12. The equipment meets the hygiene and safety standards.
Specifications
Model ZHGS-2021N
Filling speed <40-60bottles/min ( Base on500-2000ml )
Filling range 500-5000ml
Measurement accuracy ± 1%
Power 8.6kw. 380V
Air preasur 0,6 —0.7mpa
Machine dimension 3000*1500*2100mm
Weight 650kg
We provide a one-stop service integrating design, measurement, production, delivery, installation, and after-sales service.
Our packing machine is extensively used in Cosmetics, washing, medicine, food, etc. Artificial intelligence is the future trend.
We have Obtained ISO9001 quality management system authentication and parts of our products have passed CE authentication.
We have a professional R & D and design team of packaging machinery,We provide CAD and 3D design sketches. We perform three phases of QC to ensure product quality.
