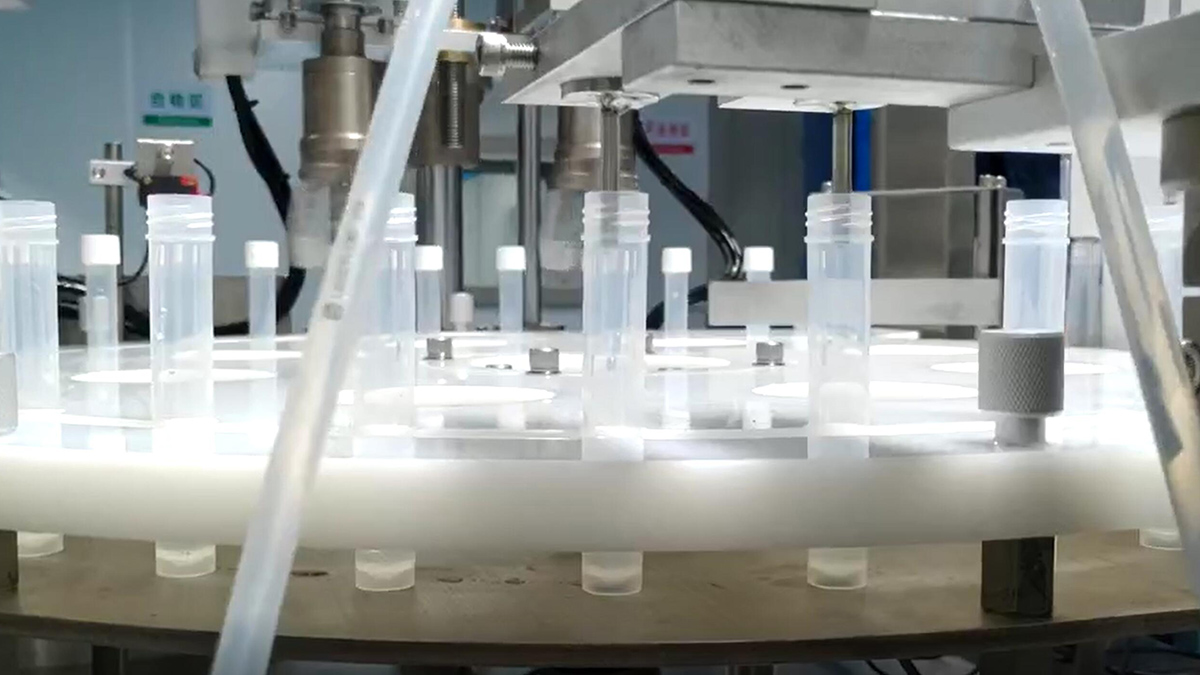

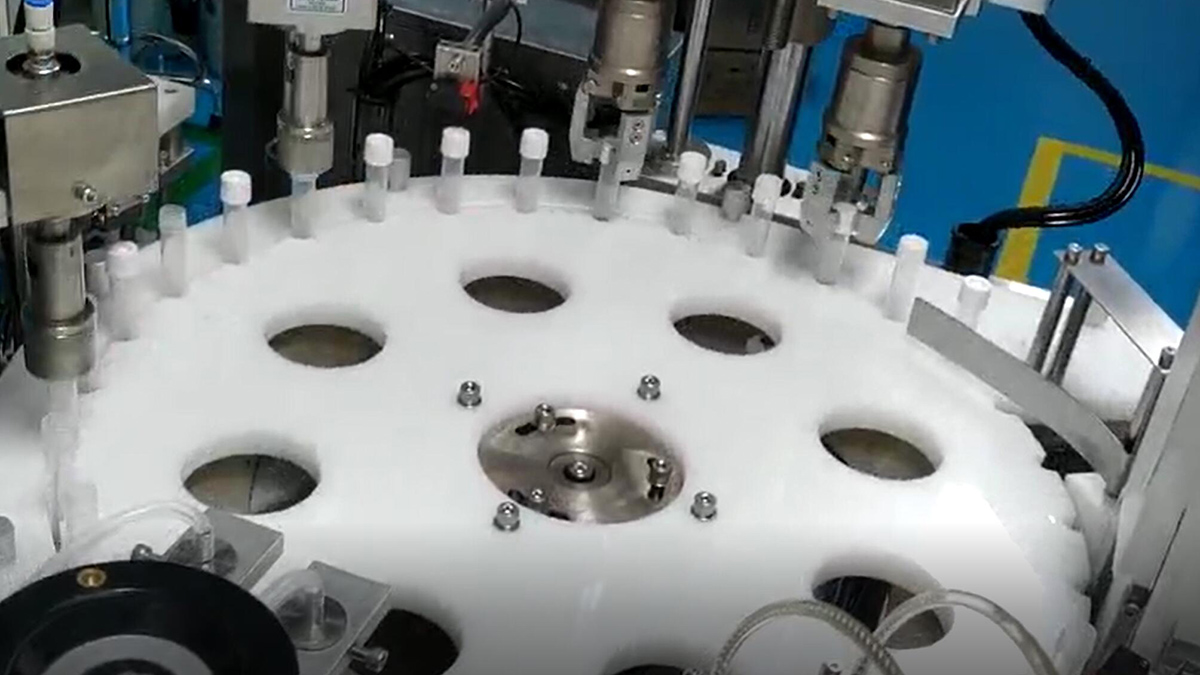

Zungwan Reagent Tube Filling Capping Machine DTNX-80T Filler Capper Factory

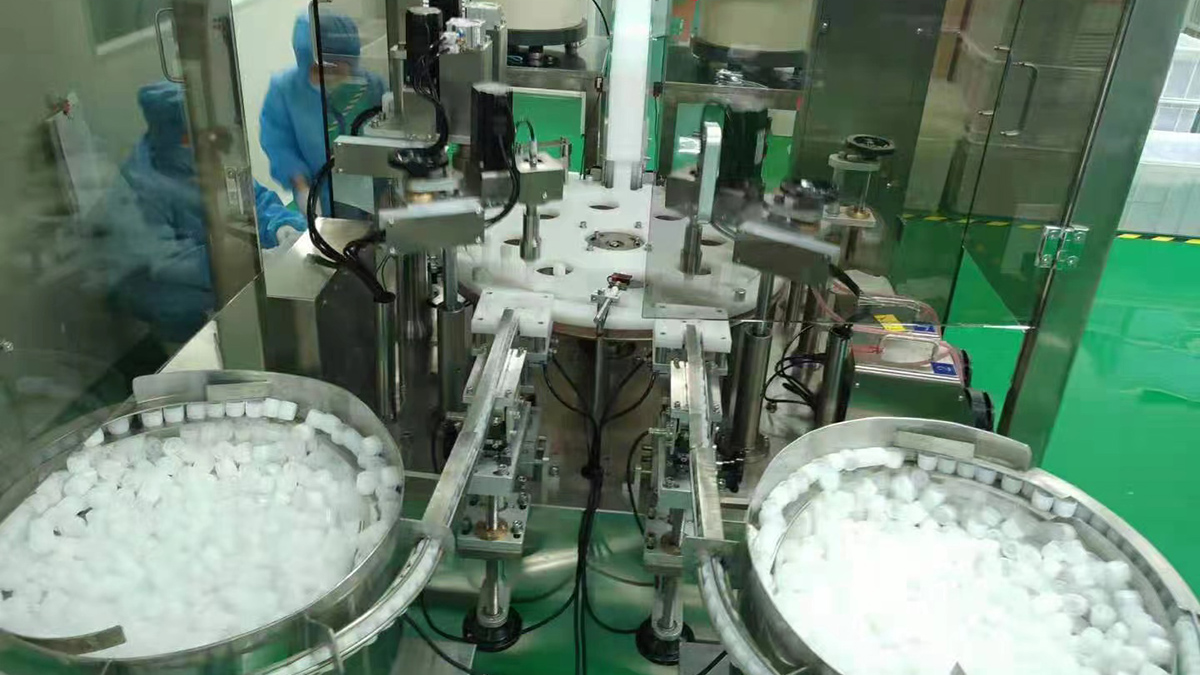

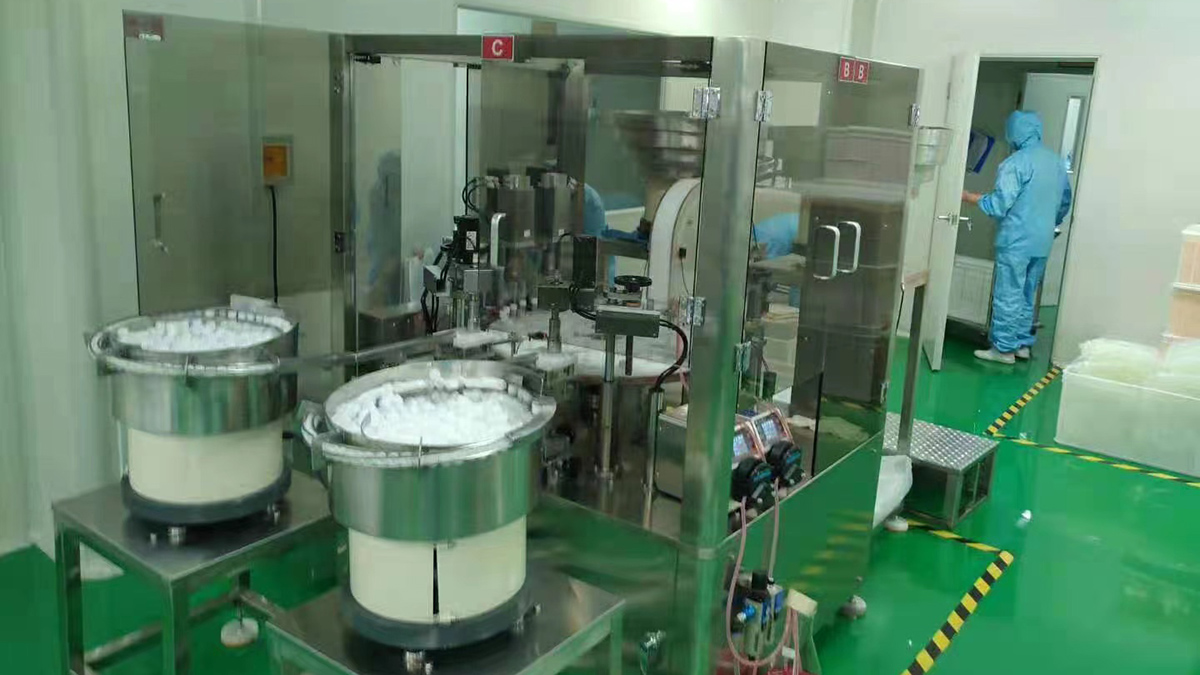

Automatic Eye Drop Unscrambling,Filling,Plugging,Capping And Labeling Production line This production line is designed for eye drop bottles unscrambling, filling,plugging, capping and labeling.This filling and capping machine speed requirement is 60-80 bottles per min.Design required 100% automation rate without without human interference and required whole filling and capping machine to be compact .Whole machine covered by 304 stainless steel,material contact parts made of 316L stainless steel, ceramic, meet the GMP standard.l The unscrambler is high speed unscrambler which doing the sorting disordered bottles in order and feeding into the conveyor of the filling and capping machine.l After bottle entering the filling machine, sensors will detect the bottles to control no bottle no fillingl With servo ceramic pump filling system, machine will do high accuracy and fast speed filling, filling speed and filling volume are adjustable from the HMI.l Ceramic pump filling system on filling and capping machine, because of no sealing rings in filling system, which make maintenance much easierl Double chute high speed vibrator automatic sorting and feeding the caps, our patent design double heads mechanical hand picking device will pick and place the plugs to the filled bottles.l Automatic pressing the plugs to ensure plugs in correct position,l Sensors will detect the plugs on the bottles to control no plug no cap feeding.l Double channels cap sorting vibrators doing sorting and feeding the caps,Double heads hand picking two caps to two plugged bottles together.l During placing the cap the servo system will do the pre-capping to prevent the cap flying off or wrong screw thread,highly improve the capping success rate.l Then capping station will doing cap tightening automatically.l Both pre-capping and capping stations are controlled by servo system, capping torque and speed adjustable from the HIMI.l This filling and capping machine is customized new design compact monoblock machine,it gathering filling,plugging and capping in one machine with the speed of 80 bottles per minl After the works of filling and capping machine finished, bottles enter into the front and back labelingl This labeling machine adopted Lion sensor,it is suitable for major design labels,such as paper labels,foil labels,plastic clear labels and so on.l According to the design requirements,the labeling machine will do double sides labeling and round bottle wrap around labeling at the same machine.l Then finished products arrived the collection station for secondary packing progress.

Automatic machine firstly developed in china by zhonghuan,Features include automatic syringe nest-tubin-feeding,automatic vacuum filling,automatic vacuum plugging and automatic operation with monitoring all the way.Beside normal liquid,also suitable for filling transparent thick liquid like ester acid.

This machine is a quasi-tabletop type counting machine with reasonable design, compact structure, easy to use and high counting efficiency. It can be widely used in the fast counting bottling for a variety of different shapes and sizes of tablets, capsules, pills, transparent soft capsules and other drugs. The counting bottling accuracy has reached the advanced level of similar products at domestic and overseas.

This production line is composed of LP100 type bottle machine, spray YGX-P JBJ sealing machine, capping machine, GLT-A vertical labeling machine. Automatically finish the bottle, filling, spray pump, jet pump, the outer cover, labeling and other processes.

It has been improved the inner design turret, and imports beeline bearings for each machine from Japan directly, so that it can be sure a longer usage-life and precision of machine.

It can finish the following motion at the same time: capsule feeding, capsule separating, power filling, capsule rejecting, capsule locking, finished capsule discharge and die hole cleaning etc.

This model is an intermittent motion and hole plate type filling full automatic capsule filling equipment. It adopt optimization design for meeting the characteristics of Chinese medicine and the requirement of GMP, it has the characteristics of compact mechanism, small volume, lower noise, precision filling dosage, multi-function, stably running etc. It can finish the following motion at the same time: capsule feeding, capsule separating, power filling, capsule rejecting, capsule locking, finished capsule discharge and die hole cleaning etc. It is the most ideal hard capsule filling equipment for pharmaceutical and health food industry.

This model is an intermittent motion and hole plate type filling full automatic capsule filling equipment. It adopt optimization design for meeting the characteristics of Chinese medicine and the requirement of GMP, it has the characteristics of compact mechanism, small volume, lower noise, precision filling dosage, multi-function, stably running etc.
