Zungwan - Best OEM Filling And Sealing Machine, Filling And Capping Machine Manufacturer For Food, Cosmetics, Pharmaceutical, etc.

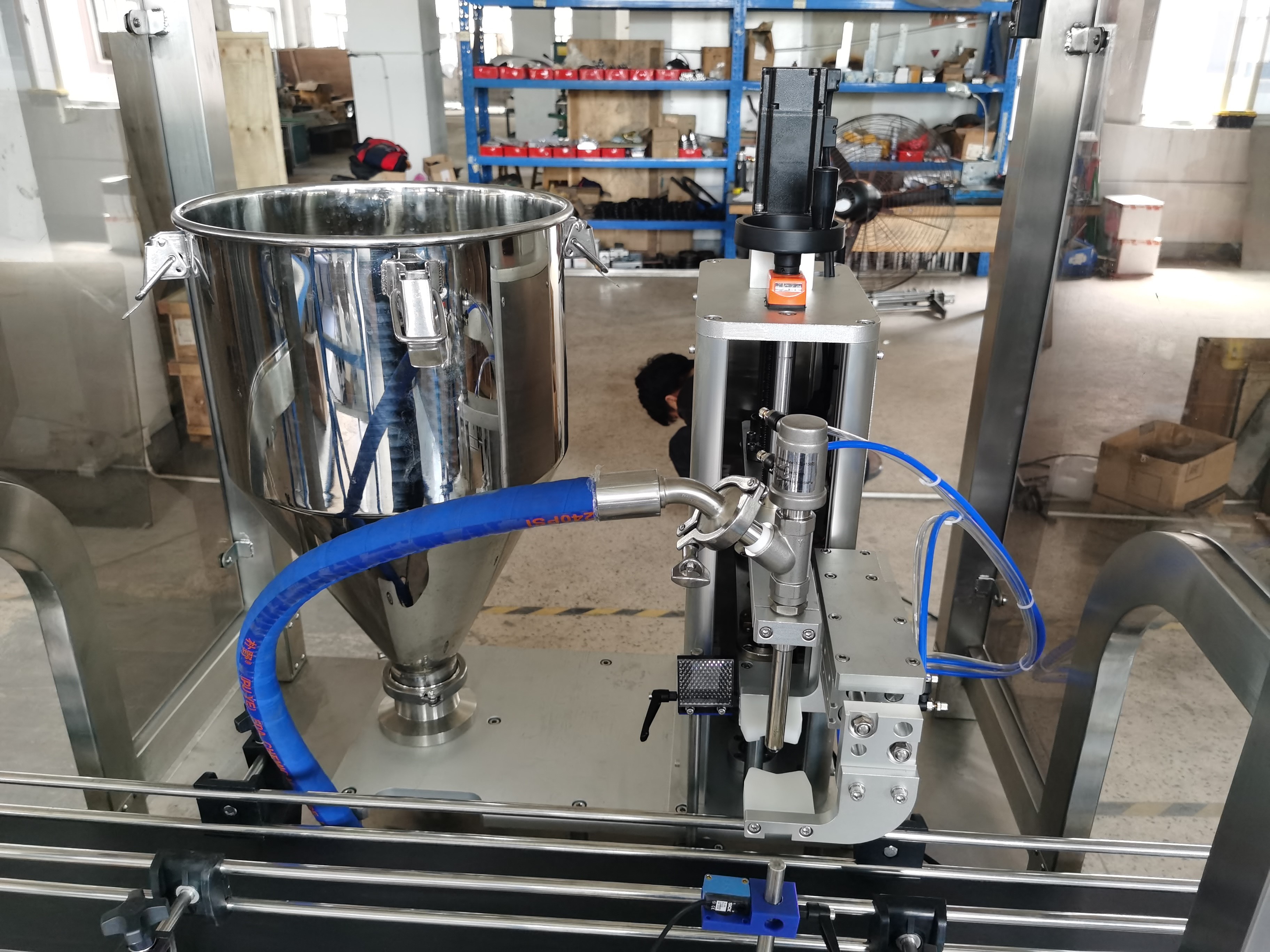

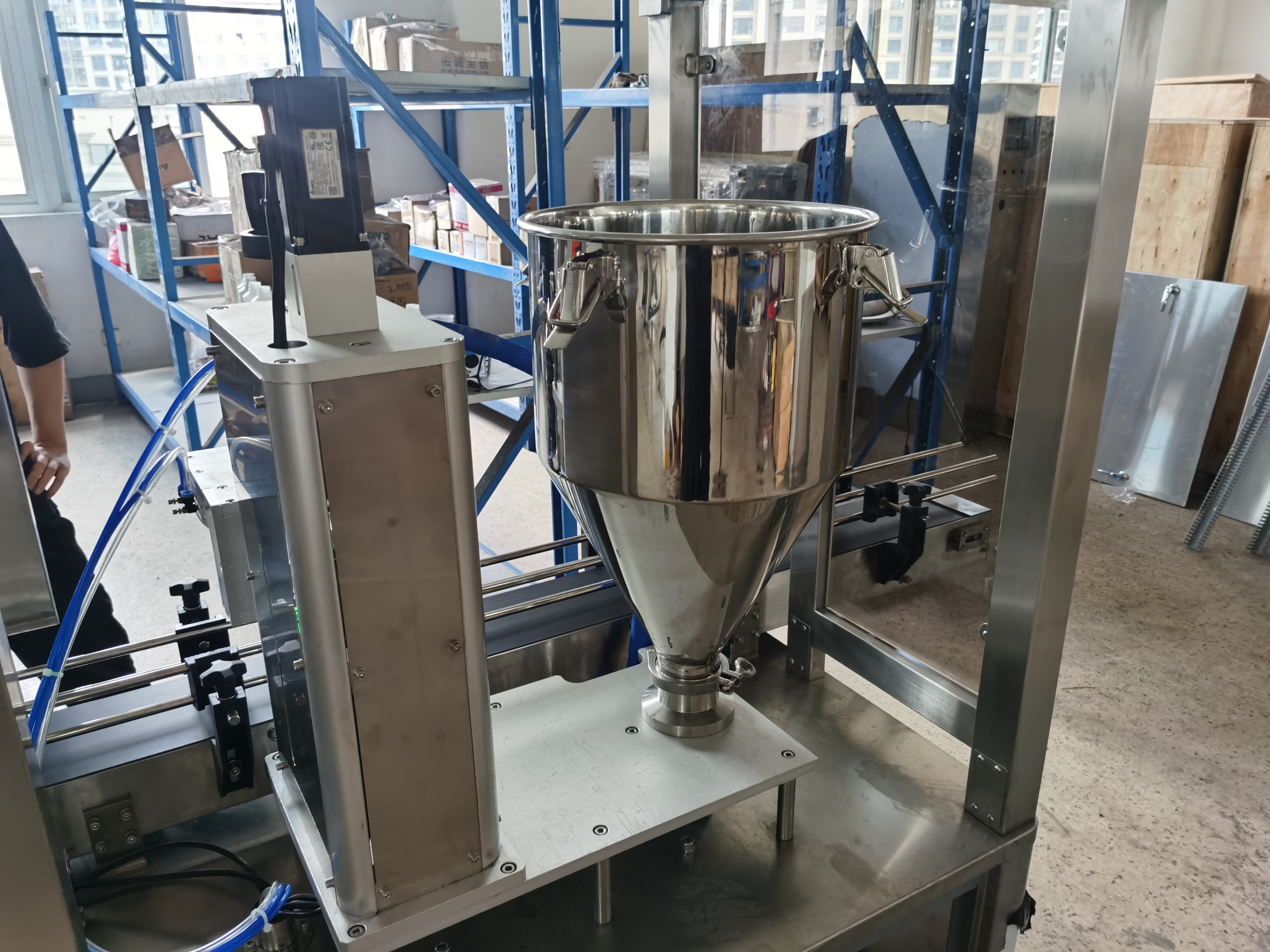

This machine is controlled by computer (PLC), touch screen control panel. It is characterized by long service life, easy maintenance, stable and reliable, convenient operation, accurate measurement, fast speed. All parts in contact with the filling material are made of stainless steel. This product is widely used in daily chemical, food, agrochemical and other industries.
Machine Features
l PLC touch screen control panel control, easy and quick operation.
l The whole machine is made of stainless steel 304.
l SUS 316L hopper
Extra function can be choose:heating,air pressing,mixing,etc.
l Pump head driven by variable speed servo motor.
l You can use the diving function to fill the liquid which is easy to foaming.
l Different pipe and filling nozzle chosen by different liquid and bottle.
l The conveyor is also driven by a servo motor,not a RV motor. It will achieve a fast speed to transfer.
l Famous brand electrical components ensure the stability and durability of the equipment.
l Air pressure check device: when the air pressure is lower than the set number, the machine will automatically alarm and stop. The instrument has the characteristics of convenient adjustment and durability.
Main Technical Parameters
1. Number of filling heads: 1
2. Filling output: 10-60 bottles/min
3. Applicable bottle: width 33-160mm, height 50-300mm.
4. Filling volume:50ml-5000ml
5. Precision: ±0.5%
6. Air pressure: 0.6~ 0.8MPa
7. Power supply: ±220V
8. Power: 2.0KW
9. Weight: About 320kgs
